Product picture |
PartNumber |
Describe & Features
请选择
请选择
1CH DP3T Switch
1CH DP4T CMOS Analog Signal
1CH DPDT USB Switch
1CH DPDT USB Switch with OVP
1CH SPDT Switch
1CH SPST, Rail-to-Rail Negative Passing
2CH DPDT Switch
2CH SPDT Audio Switch
2CH SPDT Audio Switch for Automotive
2CH SPDT Audio Switch witch Low VIH
2CH SPDT Audio Switch witch OVP
2CH SPDT Audio Switch with Negative
2CH SPDT USB Switch with OVP
2CH SPST, Rail-to-Rail Negative Passing
4PST Depletion Mode Isolation Audio Switch
Low RON, High Voltage, Rail-to-Rail Negative Signal Passing, SPST Analog Switch
Type-C USB/Audio/SENSE/MIC/SBUX Switch
USB Type-C Analog Audio Switch with Protection Function
|
VCC (V)
请选择
请选择
0~3
1.4~4.3
1.65~4.5
1.65~4.7
1.65~5.5
1.8~5.5
2.3~5.5
2.5~5.5
2.7~5.5
|
ICC (μA)
请选择
请选择
29
30
32
40
65
80
95
180
＜0.5
＜1
|
IOFF (μA)
请选择
请选择
/
0.1
0.5
1
3
＜0.1
＜0.5
＜1
|
VIS (V)
请选择
请选择
-13~18
-2.5~VCC
-2~2
-2~VCC
-3.6~5.5
-3~18
0~3.6
0~3.6/-3.6~3.6
0~VCC
|
RON (Ω)
请选择
请选择
0.095
0.1
0.4
0.5
0.6
0.8
0.9/2.5/0.4/3/2.7
1
3.0
3.5/1.0/0.35/4/3.5
6
7.6
26
48
85
|
BW@-3dB(MHz)
请选择
请选择
<200
30
50
55
65
100
130
150
180
250
400
500
750
900
1000
USB 750
USB 800
|
VISO (dB)
请选择
请选择
-100
-25@250MHz
-30@250MHz
-95
-90
-83
-82
-70
-65
-63
-62
-60
-57
-90-28@240MHz
Audio -100
|
XTALK (dB)
请选择
请选择
-100
-37@250MHz
-45@250MHz
-90
-85
-84
-83
-70
-62
-60
/
Audio -100
|
THD(%)
请选择
请选择
/
0.0003
0.002
0.01
0.03
0.06
0.08
0.14
0.7
Audio 0.0001
|
Package
请选择
请选择
CSP12(0.4 pitch)
DFN10(3x3)
DFN6(1.0X1.45)/SC70-6/SOT23-6
FCDFN6 (1.2 × 1.5)
FCDFN6(1.2x1.5)
MSOP10
QFN10L(1.8x1.4)
QFN10L(2x1.5)
QFN12L(2.2x1.4)
QFN16(3x3)
QFN16L(2.6x1.8)
QFN16L(3x3)/SOP16/SSOP16
SOT23-6
WLCSP12 (0.4 pitch)/QFN16(3 x 3)
WLCSP25 (0.4 pitch)
WLCSP25 (2.29 × 2.25)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET7460H | 2CH SPST, Rail-to-Rail Negative Passing | 2.7~5.5 | 180 | 3 | -13~18 | 0.1 | 100 | -100 | -100 | 0.0003 | CSP12(0.4 pitch) |
|
ET74HC4852 | 1CH DP4T CMOS Analog Signal | 2.5~5.5 | ＜1 | ＜1 | 0~VCC | 48 | 180 | -83 | -90 | 0.7 | QFN16L(3x3)/SOP16/SSOP16 |
|
ET32323 | Low RON, High Voltage, Rail-to-Rail Negative Signal Passing, SPST Analog Switch | 2.3~5.5 | 80 | 1 | -3~18 | 85 | 150 | -95 | / | 0.0003 | FCDFN6 (1.2 × 1.5) |
|
ET3550 | 4PST Depletion Mode Isolation Audio Switch | 0~3 | 40 | 0.5 | -2~2 | 0.5 | <200 | -90 | -85 | 0.002 | WLCSP12 (0.4 pitch)/QFN16(3 x 3) |
|
|
ET74801 | USB Type-C Analog Audio Switch with Protection Function | 2.7~5.5 | 65 | 1 | 0~3.6/-3.6~3.6 | 0.9/2.5/0.4/3/2.7 | USB 800 | Audio -100 | Audio -100 | 0.0003 | WLCSP25 (2.29 × 2.25) |
|
ET7428 | 2CH SPDT Audio Switch witch OVP | 2.7~5.5 | 29 | / | -3.6~5.5 | 1 | 400 | -65 | -70 | 0.01 | QFN10L(1.8x1.4) |
|
ET32123 | 1CH SPST, Rail-to-Rail Negative Passing | 2.3~5.5 | 95 | 1 | -3~18 | 0.095 | 150 | -95 | / | 0.0003 | FCDFN6(1.2x1.5) |
|

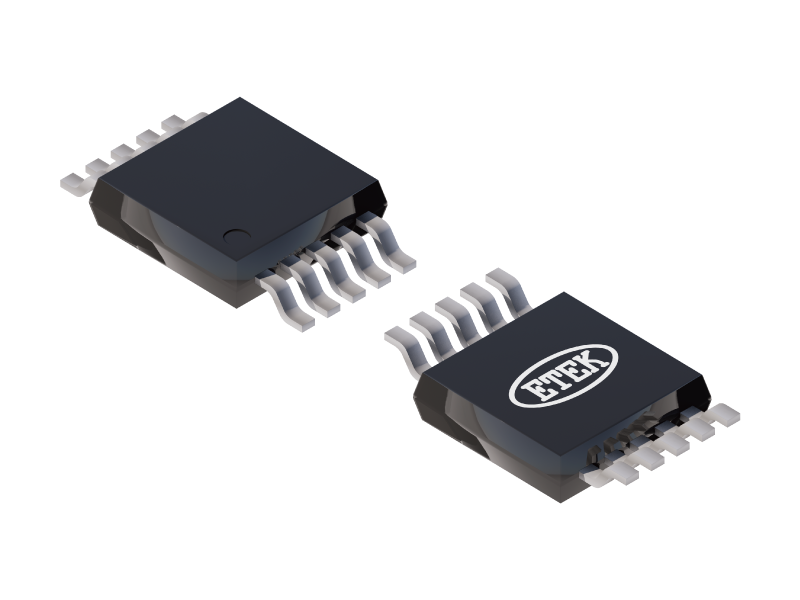

ETQ5228M | 2CH SPDT Audio Switch for Automotive | 1.65~5.5 | ＜0.5 | ＜0.5 | -2~VCC | 0.5 | 130 | -70 | -85 | 0.06 | MSOP10 |
|
ET7222 | 1CH DPDT USB Switch | 1.65~4.7 | ＜1 | ＜1 | 0~VCC | 6 | 750 | -25@250MHz | -37@250MHz | / | QFN10L(1.8x1.4) |
|

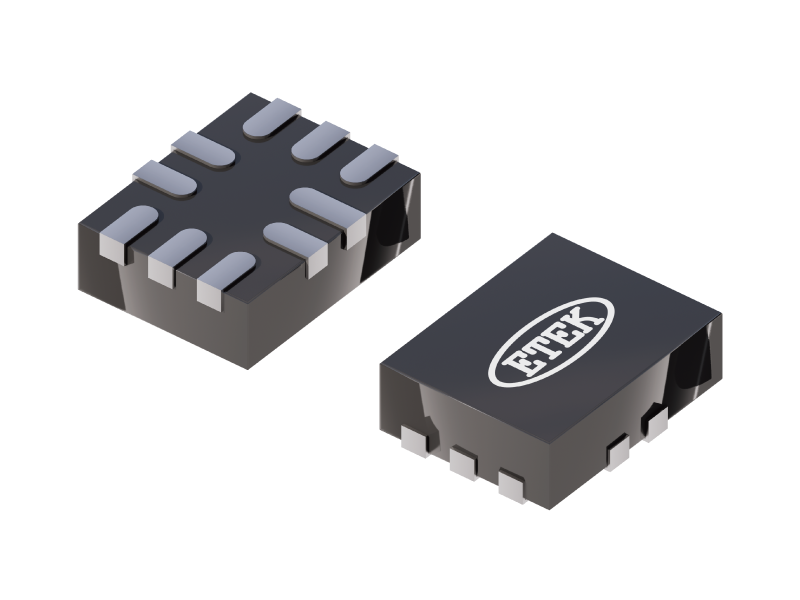

ET5229H | 2CH SPDT Audio Switch witch Low VIH | 1.65~5.5 | ＜0.5 | ＜0.5 | -2.5~VCC | 0.6 | 65 | -65 | -90 | 0.06 | QFN10L(1.8x1.4) |
|
ET5228H | 2CH SPDT Audio Switch with Negative | 1.65~5.5 | ＜0.5 | ＜0.5 | -2.5~VCC | 0.6 | 65 | -65 | -90 | 0.06 | QFN10L(1.8x1.4) |
|
ET74752Y2 | 1CH DPDT USB Switch with OVP | 2.3~5.5 | 32 | 0.1 | 0~3.6 | 7.6 | 1000 | -60 | -60 | / | QFN10L(2x1.5) |
|

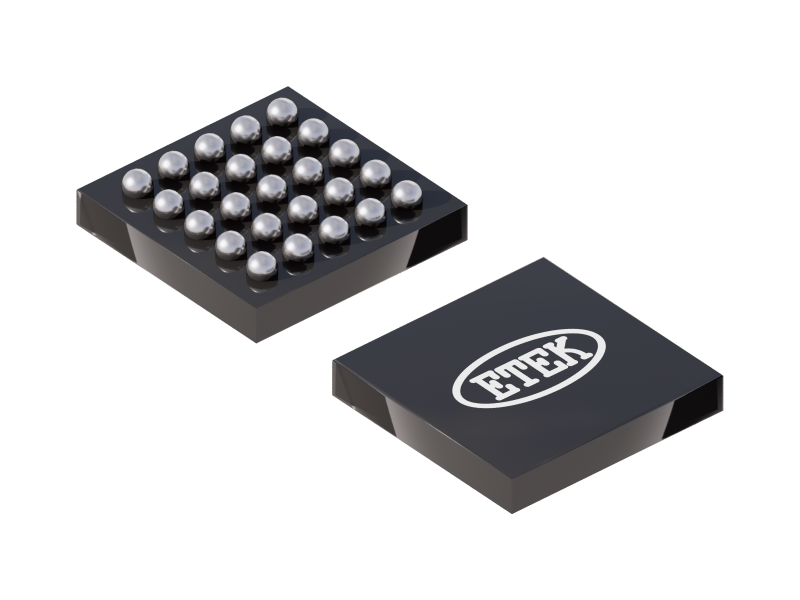

ET7480M | Type-C USB/Audio/SENSE/MIC/SBUX Switch | 2.7~5.5 | 65 | 0.5 | 0~3.6/-3.6~3.6 | 3.5/1.0/0.35/4/3.5 | USB 750 | Audio -100 | Audio -100 | Audio 0.0001 | WLCSP25 (0.4 pitch) |
|
ET74752Y1 | 1CH DPDT USB Switch with OVP | 2.3~5.5 | 32 | 0.1 | 0~3.6 | 7.6 | 1000 | -60 | -60 | / | QFN10L(1.8x1.4) |
|
ET7429 | 2CH SPDT USB Switch with OVP | 2.7~5.5 | 30 | 1 | 0~3.6 | 6 | 1000 | -90-28@240MHz | -90 | / | CSP12(0.4 pitch) |
|
ET7228/ET7229 | 1CH DPDT USB Switch | 1.65~4.5 | ＜1 | ＜1 | 0~VCC | 6 | 900 | -30@250MHz | -45@250MHz | / | QFN10L(1.8x1.4) |
|
ET2467Y1 | 2CH DPDT Switch | 1.65~4.7 | ＜1 | ＜0.5 | 0~VCC | 0.8 | 50 | -62 | -62 | 0.01 | QFN16L(2.6x1.8) |
|
ET2467Y | 2CH DPDT Switch | 1.65~4.7 | ＜1 | ＜0.5 | 0~VCC | 0.8 | 50 | -62 | -62 | 0.01 | QFN16(3x3) |
|
ET3856 | 1CH DP3T Switch | 1.4~4.3 | ＜0.5 | ＜0.5 | 0~VCC | 0.6 | 50 | -82 | -84 | 0.03 | QFN12L(2.2x1.4) |
|
ET5228 | 2CH SPDT Audio Switch with Negative | 1.65~5.5 | ＜0.5 | ＜0.5 | -2~VCC | 0.5 | 65 | -65 | -90 | 0.06 | QFN10L(1.8x1.4) |
|

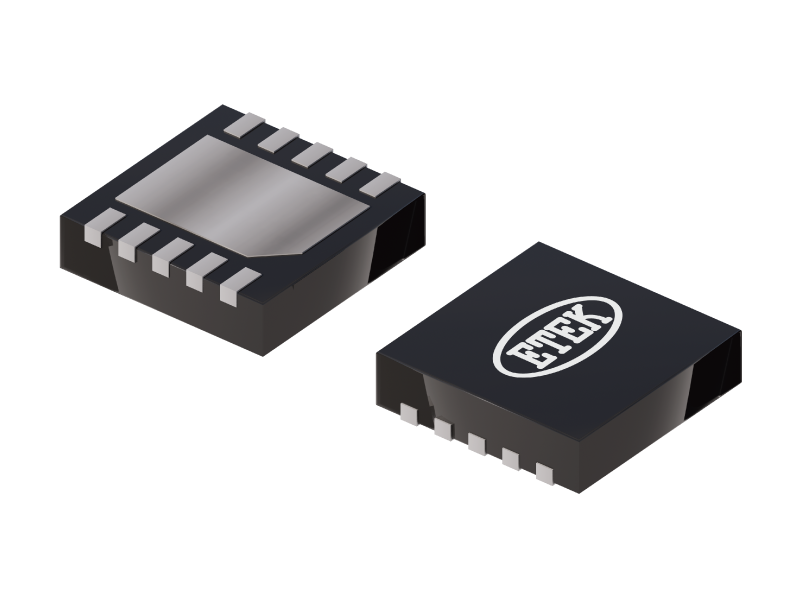

ET5224Y | 2CH SPDT Audio Switch | 1.8~5.5 | ＜1 | ＜0.5 | 0~VCC | 0.4 | 30 | -65 | -83 | 0.14 | DFN10(3x3) |
|
ET5223 | 2CH SPDT Audio Switch | 1.65~5.5 | ＜1 | ＜0.5 | 0~VCC | 0.5 | 55 | -60 | -90 | 0.08 | QFN10L(1.8x1.4) |
|
ET3167 | 1CH SPDT Switch | 1.8~5.5 | ＜1 | ＜0.1 | 0~VCC | 26 | 500 | -63 | / | 0.01 | SOT23-6 |
|
ET3157 | 1CH SPDT Switch | 1.8~5.5 | ＜1 | ＜0.1 | 0~VCC | 3.0 | 250 | -57 | / | 0.01 | DFN6(1.0X1.45)/SC70-6/SOT23-6 |
